AMC 12B 2022 Problem 18

Each square in a 5 \times 5 grid is either filled or empty, and has up to eight adjacent neighboring squares, where neighboring squares share either a side or a corner. The grid is transformed by the following rules:

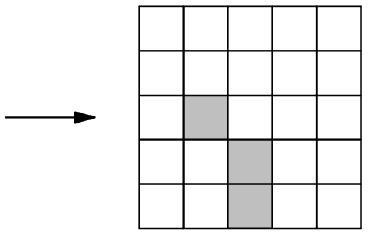

Any filled square with two or three filled neighbors remains filled. Any empty square with exactly three filled neighbors becomes a filled square. All other squares remain empty or become empty. A sample transformation is shown in the figure below.

Description Description

\quad \quad \quad \quad Initial \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad Transformed \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad

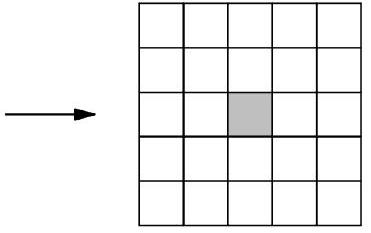

Suppose the 5 \times 5 grid has a border of empty squares surrounding a 3 \times 3 subgrid. How many initial configurations will lead to a transformed grid consisting of a single filled square in the center after a single transformation? (Rotations and reflections of the same configuration are considered different.)

Description Description

\quad \quad \quad \quad Initial \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad Transformed \quad \quad \quad \quad \quad \quad \quad \quad \quad \quad

Answer Choices
A. 14
B. 18
C. 22
D. 26
E. 30
